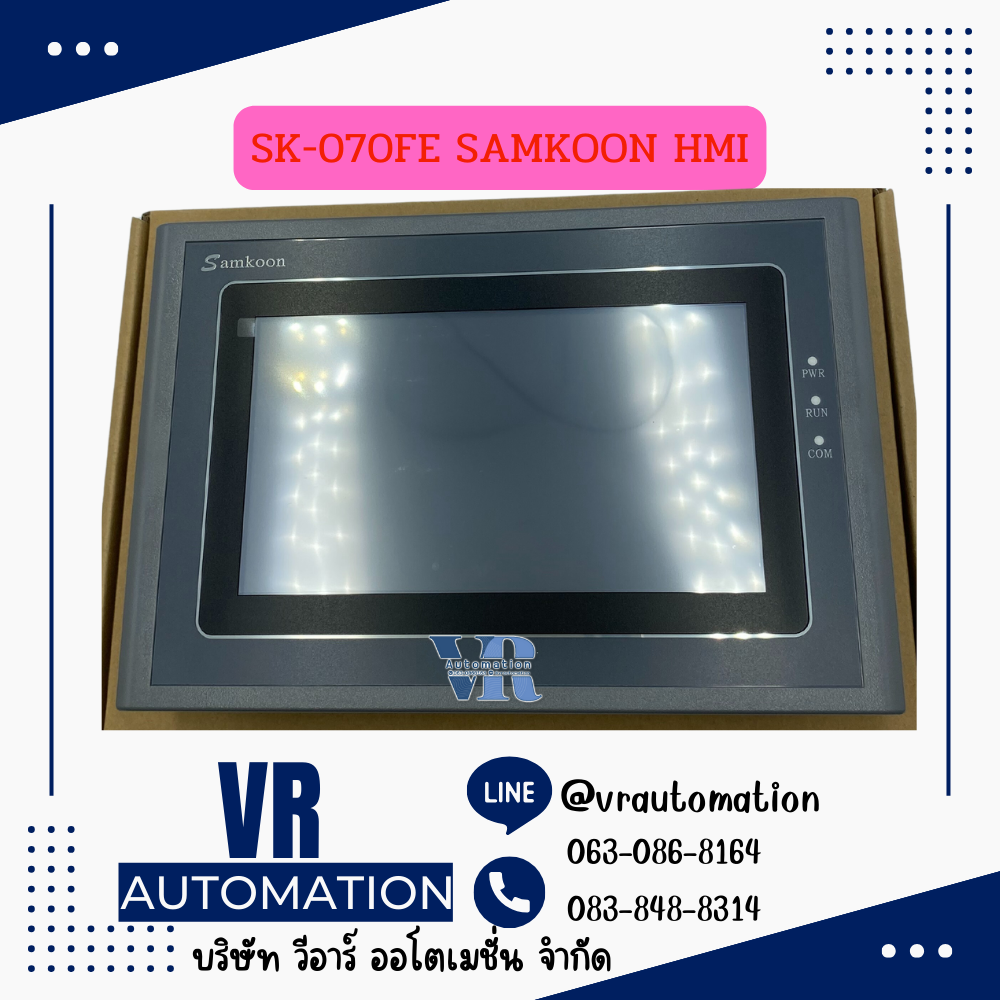

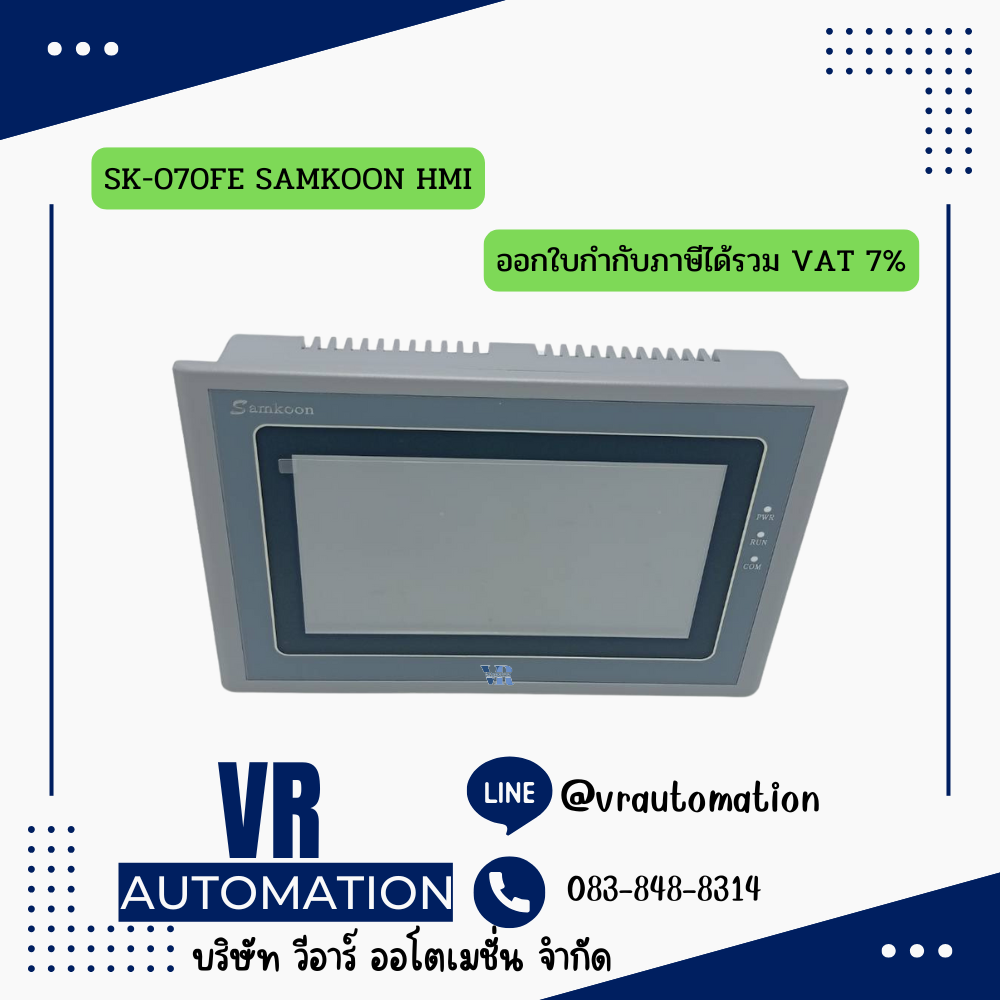

SAMKOON SK-070FE HMI 7″
*ของแถม
1.สายโหลดโปรแกรมจอทัชสกรีน
2.ถ้าต้องการสายลิ้งค์ PLC ให้ทักแชท หรือ LINE:@vrautomation เท่านั้น
เงื่อนไขถ้าลูกค้าไม่ทักแชทบอกยี่ห้อ/รุ่น PLC ก่อนจะขออนุญาตไม่แถมให้
คลิปสอนใช้งานทัชสกรีน samkoon by vrautomation ทั้งหมด
คลิกเลย http://www.vrautomation.net/b/36
Processor:
- Industrial-grade high-performance processor: Cortex A8, up to 600MHz.
Communication modes:
- Built-in COM ports integrate communication modes of RS 232/422/485; two fast serial communication ports.
Provide ports of USB-A and USB-B:
- USB-A: Support for a transmission speed of 10M/s.
- USB-B (Plug and Play): Support for USB flash disk, printer, mouse and other USB peripherals.
Adaptive network:
- 10M/100M adaptive network card ensures quick data exchange via network between HMI and other devices to realize industrial Ethernet communication.
FLASH:
- Large FLASH capacity; USB disk storage; large capacity of data storage; data saving when failure.
Data security:
- Neoteric password mechanism ensures operations safer and more reliable.
Picture Library:
- Provide rich and broad-spectrum vector library;
- Support for custom vector graphics and self-painting;
- Support for BMP, JPG and other image formats;
- Provide standard vector frames.
Text Fonts:
- Support for multiple languages: up to five languages;
- Support TRUE TYPE (TTF) font;
- Support editing the attribute of complex fonts;
- Unicode coding.
Printer & Serial network:
- Support printing screens and data through USB;
- RS 485: realize connections to up to 32 PLCs or other devices.
Penetration communication:
- Realize communication between PC and PLC or other devices through HMI;
- Realize communication between two HMI and one PLC.
Formation Function:
- Slider for inputting numerical values by sliding;
- Drop-down boxes to display various items in the format of list for user’s choice;
- Kinds of trend chart to display controls.
Online simulation:
- Connect to PLC through PC to simulate project; Fetch data from PLC.
Ethernet communication:
- Realize communication between HMIs or between HMI and controller device through Ethernet.
Macro programming:
- C language script;
- Custom function libraries;
- Free port communication protocols;
- C standard mathematical functions;
- Familiar interface;
- Various modes of execution.
USB Disk:
- Update project through U disk;
- Import and export data through U disk;
- Update recipe through U disk.
Others:
- Alarm functions expension;
- Data importing and exporting.
High definition resistance screen > >

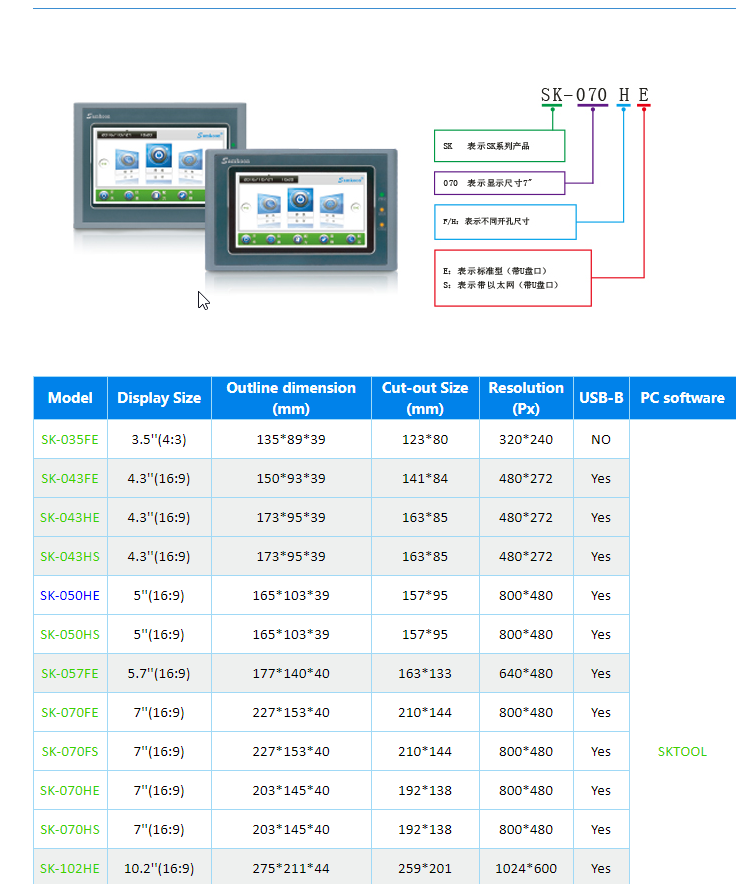

Hardware | Outline dimension | 203 × 145 × 38 |
Cut-out Size | 192 × 138 | |
Net Weight | 0.78Kg | |
Display | Model | SK-070HE |
Display Size | 7″(16:9) | |
Resolution(Px) | 800 × 480 | |
Touch Screen | Four-wire screen | |
Color | 262,114 | |
Backlight | LED | |
Contrast Ratio | 400:1 | |
Luminance | 450cd/㎡ | |
Properties/Certification | Memory | 128M FLASH + 128M DDR2 |
CPU | Cortex A8 600MHz | |
Electric Strength Test | 500V DC, 1min | |
ESD | Level4 ± 8kV | |
FCC | FCC,Class A | |
CE | EN55022 & EN55024 | |
Protection Grade | IP65(Front panel) | |
Housing Material | ABS + PC | |
Power/Port | Power Supply | DC24V(+/-15%) |
Power Consumption | 6W | |

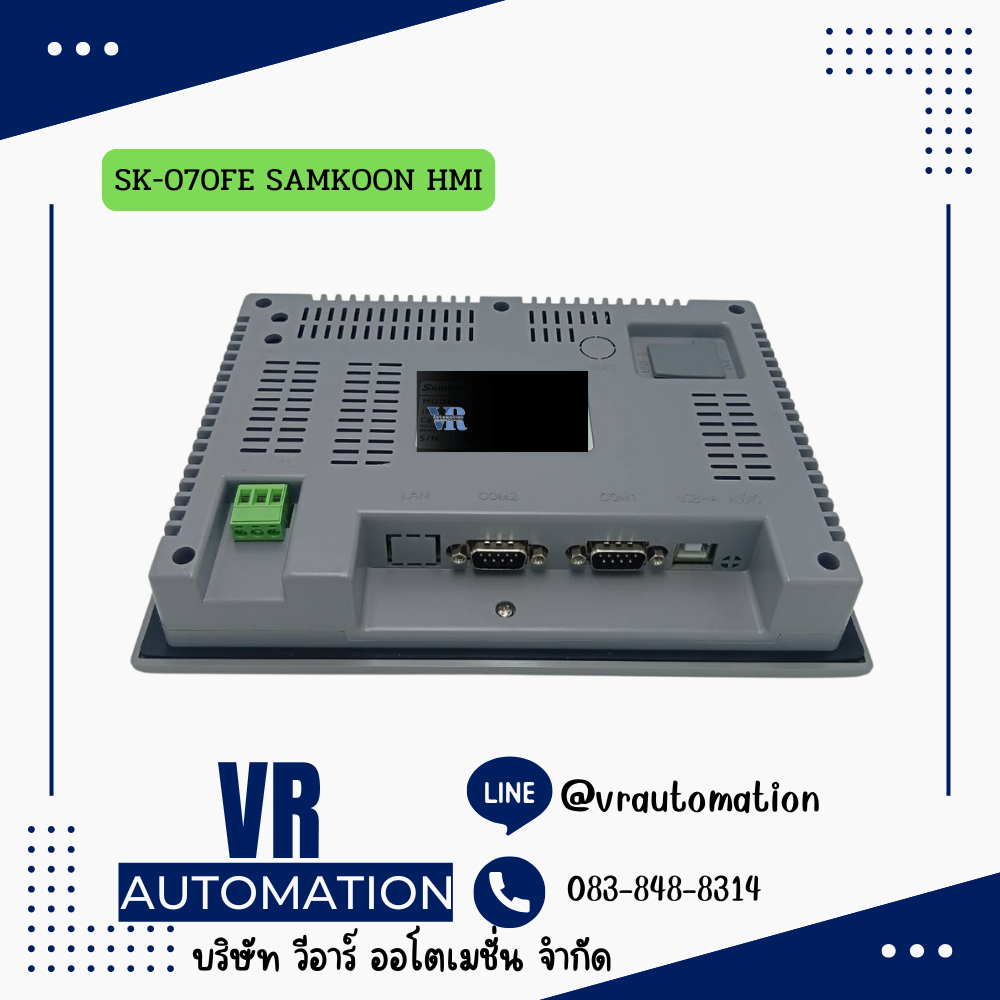

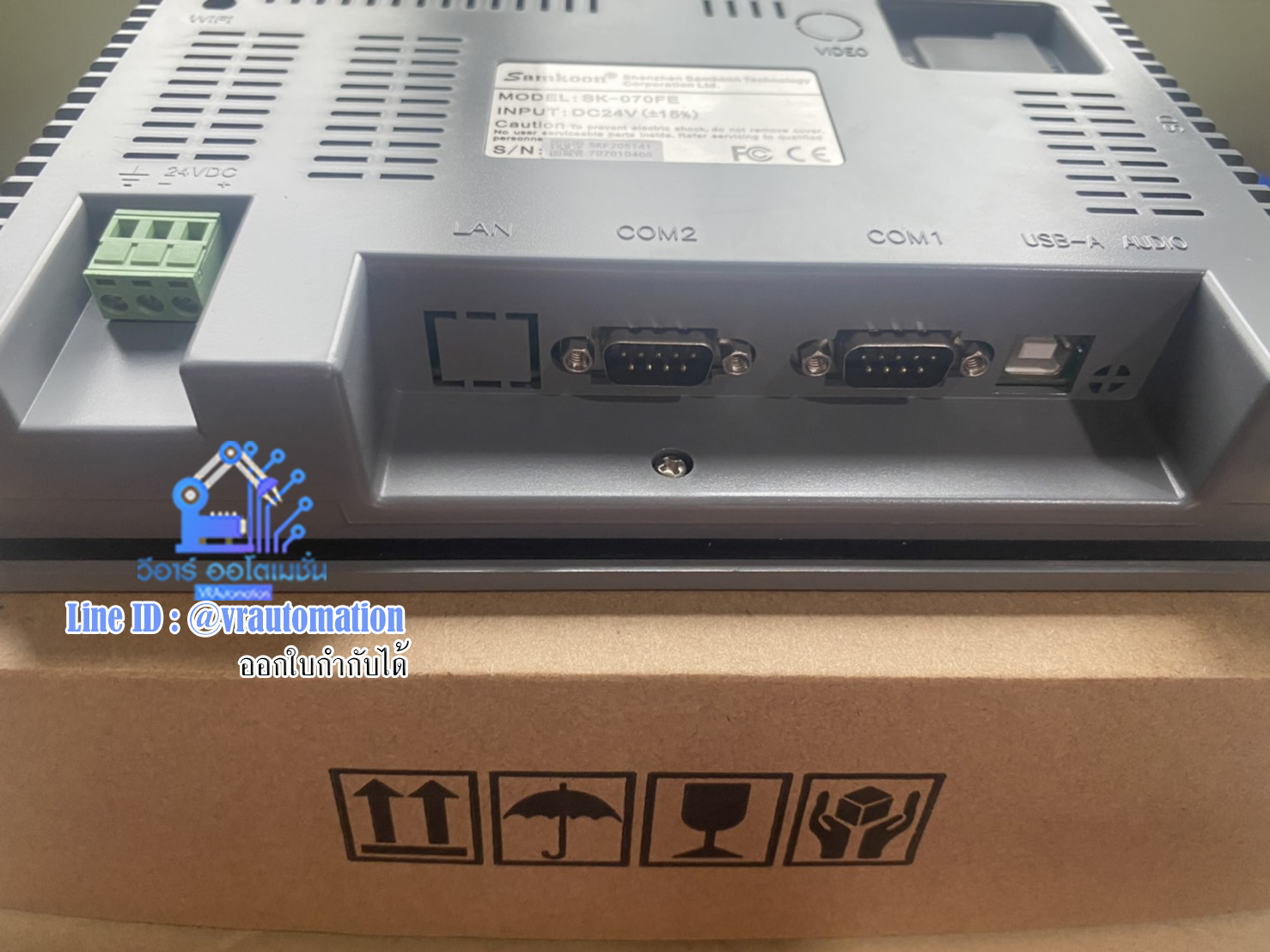

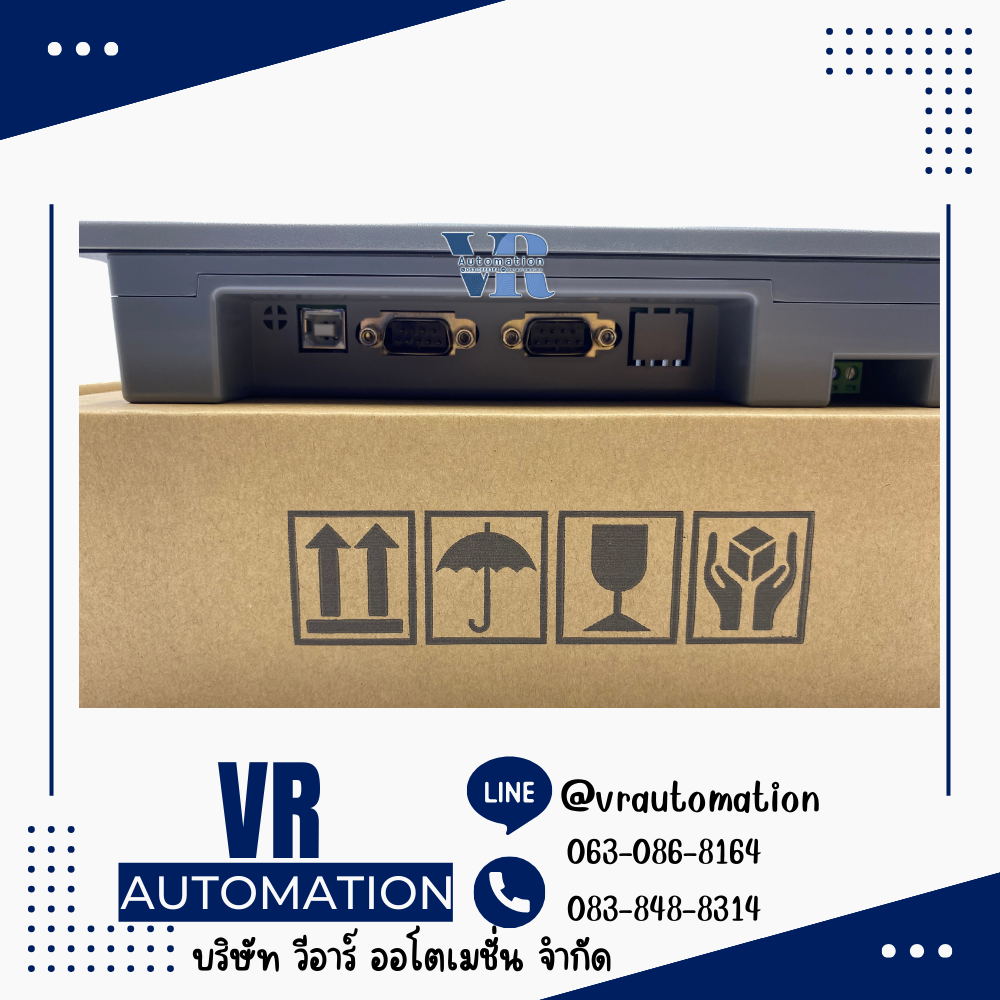

Series Port | COM1 & COM2 :RS232/422/485 | |
USB-A | YES | |
USB-B | YES | |
Ethernet Port | NO | |
Environment | Operation Temperature | -20 ~ 65℃ |
Operation Humidity | 10 ~ 90%RH | |
Shockproof | 10 ~ 25Hz(XYZ 2G/30min) | |
Software | PC Software | SKTOOL |
Dimensions of SK-070HE(mm):
Outline dimension:203×145×38
Mounting hole size:192×138
Programming software : SATOOL – 6.0.0.41 Download |
